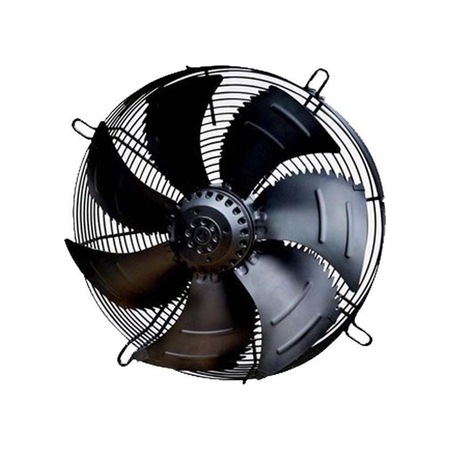

In the HVAC and ventilation industry, EC motor fans are transforming how we manage air movement and energy efficiency. EC stands for Electronically Commutated, meaning the motor uses advanced electronics to control operation instead of relying on mechanical methods. This design delivers high efficiency, precise control, and longer service life compared to traditional AC motors.

Understanding Electronically Commutated EC Motors

An electronically commutated EC motor combines the advantages of both AC and DC technology. Unlike AC motors, which use a rotating magnetic field directly from alternating current, an EC motor converts AC power into DC voltages and uses built-in electronics to manage the motor’s operation.

Key components and features include:

• Permanent magnets instead of induction windings for greater efficiency.
• No carbon brushes, which reduces wear and extends service life.
• Microprocessor-controlled variable speed control for optimal performance.

EC Motor vs AC Motor Fan

When comparing an EC motor fan to an AC fan, the differences are significant:

1. Energy Savings – EC motors consume less power by operating at the exact speed needed, whereas many AC fans run at fixed speeds.
2. Variable Speeds – EC fans can adjust airflow instantly to match demand, unlike standard AC fans.
3. High Efficiency – Typical EC motors achieve over 90% energy efficiency, compared to 60–70% for many AC motors.
4. Precise Control – Built-in electronics allow accurate adjustment of fan speed and performance.
5. Service Life – The lack of carbon brushes reduces maintenance and increases motor longevity.

How EC Fans Work

Electronically commutated fans use an integrated motor and controller to manage the magnetic field precisely. The controller rectifies incoming AC power into DC voltages, then uses electronic switching to drive the motor. This method not only delivers high efficiency but also reduces energy consumption in applications like air conditioning and refrigeration.

With variable speed control, EC fans can slow down or speed up based on environmental needs, maintaining optimal air movement while avoiding wasted energy.

Applications of EC Fans

EC fans are used in:

• Air conditioning systems for improved airflow and reduced energy costs.
• Refrigeration units to maintain stable temperatures efficiently.
• Ventilation systems where precise control of air circulation is critical.

These fans are ideal for industries focused on energy savings, quiet operation, and long service life.

Conclusion

An EC motor fan is more than just an upgraded fan—it’s a high-tech solution that merges electronically commutated control, permanent magnets, and variable speeds to achieve maximum energy efficiency. Compared to AC motor fans, EC fans offer better performance, lower energy consumption, and extended durability, making them the smart choice for modern HVAC and air movement systems.
