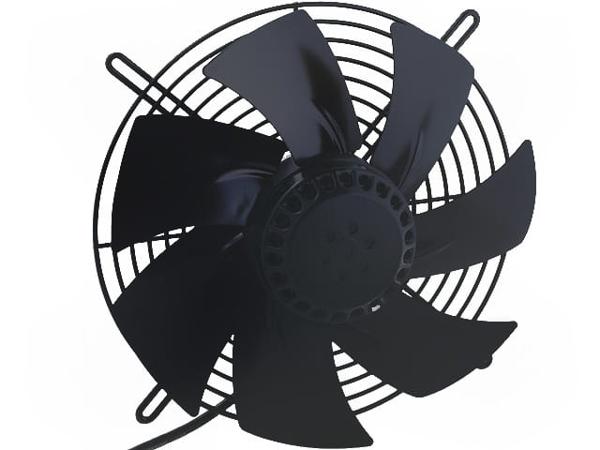

An AC motor fan is one of the most common airflow solutions in cooling and ventilation systems. “AC” stands for Alternating Current, the type of power used by these fans. From central air systems to portable air conditioners, AC fans are essential for moving air efficiently through air filters, coils, and ducts.

How AC Motor Fans Work

An AC fan operates by using Alternating Current to create a rotating magnetic field inside the motor. This rotation spins the fan blades or impellers, generating airflow.

In an ac unit, the AC motor fan is responsible for:

• Pulling air through air filters in the indoor unit.
• Moving cooled air back into the living space.
• Driving airflow in the outdoor unit to release heat during air conditioning operation.

The design is simple yet effective, making AC fans a reliable choice in various systems.

AC Fans in Air Conditioning Systems

Whether in central air or portable air conditioners, AC motor fans are critical for efficient cooling. They:

1. Move air across the evaporator coil to lower its temperature.
2. Expel heat through the condenser coil in the outdoor unit.

The type of fan used in air conditioners fans often depends on airflow and pressure needs.

Axial vs Centrifugal Fan in AC Units

When it comes to air conditioners fans, the two most common types are:

Axial Fan

• Moves air parallel to the fan shaft.
• Typically used in the outdoor unit for high airflow and low resistance.

Centrifugal Fan (Blower Fan)

• Moves air at a right angle to the fan shaft.
• Commonly found in indoor units as blower fans to push air through air filters and ductwork.

Both fan types are essential, and the choice depends on whether the priority is high volume or higher air pressure.

Advantages of AC Motor Fans

• Proven and reliable Alternating Current motor technology.
• Long service life with proper maintenance.
• Cost-effective compared to advanced motor designs.
• Effective for large and small air conditioning systems alike.

Applications Beyond Air Conditioning

While AC fans are most often seen in ac units, they are also used in:

• Refrigeration systems.
• Industrial ventilation.
• Household appliances.
• Portable air conditioner units for flexible cooling.

Conclusion

An AC motor fan is a dependable and cost-effective choice for moving air in HVAC systems. From axial fans in outdoor units to blower fans in indoor modules, they are vital to the function of central air, portable air conditioners, and other cooling solutions. Understanding Axial vs Centrifugal fan designs helps in selecting the right option for maximum cooling performance and energy efficiency.
