A vertical multistage centrifugal pump is a key component in many industries, especially in applications where pressure boosting and efficient water supply are essential. These pumps are designed to handle high pressures and are widely used in water treatment, industrial processes, irrigation systems, and building services. In this blog, we will dive into how these pumps work, what makes them efficient, and the benefits they bring to various applications.

What Is a Vertical Multistage Centrifugal Pump?

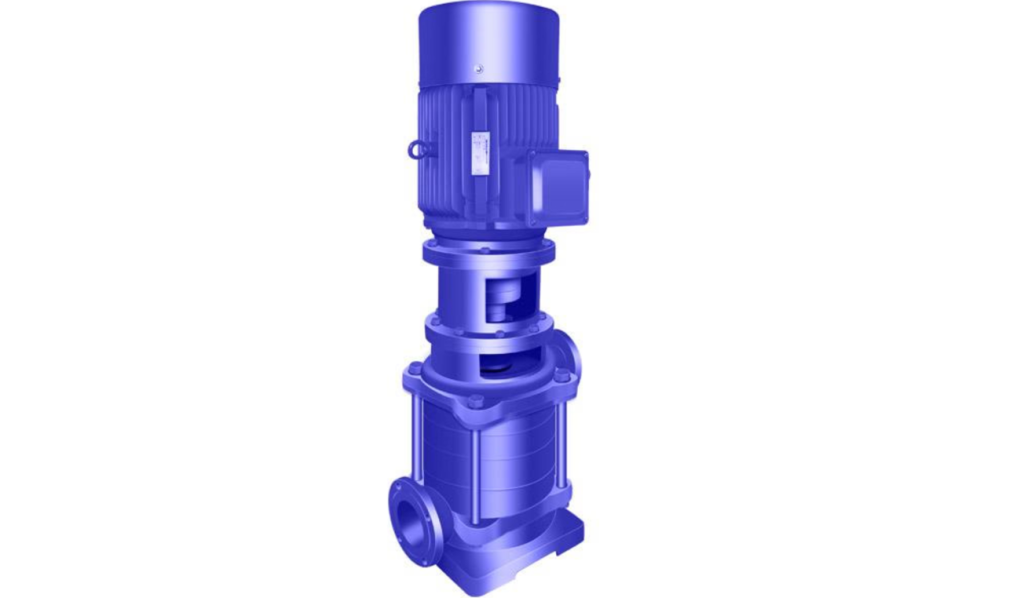

A vertical multistage centrifugal pump is a type of centrifugal pump that uses multiple impellers, or stages, to increase the pressure of a fluid as it passes through the pump. Unlike single-stage pumps, which use a single impeller, multistage centrifugal pumps are designed for high-pressure applications. The "vertical" aspect of the design refers to the pump's orientation, which is typically upright, with the motor mounted on top of the pump.

These pumps are especially effective in applications where the pressure boosting of water or other fluids is required over a range of flow rates and conditions.

How Vertical Multistage Centrifugal Pump Work?

The operation of a vertical multistage centrifugal pump follows the basic principles of centrifugal force, but with the added advantage of multiple impellers, which boost the pressure over successive stages. Here's how the pump works:

1. Fluid Inlet: The fluid enters the pump through the inlet at the bottom of the pump casing.
2. Impeller Rotation: The pump motor drives the first impeller. As the impeller spins, it accelerates the fluid, creating centrifugal force that pushes the fluid outward toward the pump's casing.
3. Pressure Increase: As the fluid exits the first impeller, it enters the next stage (or impeller), where the process is repeated. Each impeller increases the fluid’s pressure.
4. Multiple Stages: The fluid passes through a series of impellers, with each stage providing a pressure boost. The number of stages in the pump can vary, with more stages providing higher pressure capabilities. This is what differentiates a multistage centrifugal pump from a single-stage pump.
5. Fluid Discharge: After passing through all stages, the fluid exits the pump at the top, now at a significantly higher pressure, suitable for the application.
6. Efficiency: The vertical multistage design allows for a more compact pump size, with multiple stages stacked vertically within a single housing. This design improves efficiency and minimizes space usage.

Benefits of Vertical Multistage Centrifugal Pumps

1. Pressure Boosting: As the name suggests, these pumps are ideal for pressure boosting, allowing systems to operate at higher pressures. This is essential for applications like water supply, where water must be pumped over long distances or to greater heights.
2. Compact Design: The vertical orientation and stacked impellers make these pumps much more compact compared to horizontal multistage pumps. This is especially beneficial in situations where space is limited.
3. Versatility: Vertical multistage centrifugal pumps are suitable for a wide range of applications, including water treatment, heating and cooling systems, irrigation, and even fire protection systems.
4. High Efficiency: These pumps are known for their high energy efficiency due to the multiple stages of pressure increase, which reduces the overall energy required to achieve the desired output pressure.
5. Durability: These pumps are built for high-pressure operations, making them durable and long-lasting even in demanding environments.

Applications of Vertical Multistage Centrifugal Pumps

Vertical multistage centrifugal pumps are used across various industries, where water supply, pressure boosting, and fluid handling are essential. Some common applications include:

1. Water Supply Systems: In municipal water supply systems, these pumps are used to boost water pressure, ensuring that clean water reaches homes and businesses even in areas with low natural water pressure.
2. Industrial Applications: These pumps are used in industries such as oil and gas, chemical processing, and food production, where high-pressure fluid transport is necessary.
3. Boiler Feed Systems: They are commonly used to supply water to boilers, ensuring a constant supply of pressurized water for steam generation.
4. Irrigation Systems: In agricultural applications, they are used to boost pressure for irrigation, ensuring that water is evenly distributed across large areas.
5. Building Services: Vertical multistage pumps are commonly used in HVAC systems and fire-fighting systems in large buildings, where high pressure is needed to transport water to various floors.

How to Choose the Right Vertical Multistage Centrifugal Pump

When selecting a vertical multistage centrifugal pump for an application, there are several factors to consider:

1. Flow Rate: The required flow rate will dictate the size and power of the pump.
2. Pressure Requirements: The pump must be selected based on the pressure boosting needed for the specific system or application.
3. Material Compatibility: Consider the materials used in the pump’s construction, particularly if it will be used with corrosive or abrasive fluids.
4. Efficiency: Choose a pump with high efficiency to minimize energy consumption and operating costs.
5. Maintenance Needs: Look for pumps that are easy to maintain and have a long operational lifespan.

Conclusion

A vertical multistage centrifugal pump is an essential piece of equipment for applications requiring pressure boosting, especially in water supply systems and industrial processes. By utilizing multiple stages of impellers, these pumps are able to increase pressure efficiently while maintaining a compact design. Whether used in municipal water systems, irrigation, industrial processes, or HVAC applications, these pumps provide reliable and energy-efficient performance across a wide range of conditions. Understanding how these pumps work and their benefits can help engineers and system designers make informed decisions for their specific needs.
